# Processes

1. Tracing
2. Debugging
3. Sandboxing
4. Emulation
5. Instrumentation

## Tracers

**Tracers&#x20;*****execute a binary*****, logging information about function and system calls.**

A binary is executed in the analyst's system (VM).

Tracer adds hooks to applications or kernels to gain information about execution.

* Access to files, packets sent, registry access.

No confinement or security measures are in place.

* There may be no interaction between the tracer and the application.
  * The tracer monitors the system through kernel debug interfaces.

### Limitations

* No isolation, and no capability to analyze malicious or harmful code.
* Can only inspect interactions between the application and the external environment.
* The host environment must be compatible with the target binary.
  * No possibility of analyzing Windows binaries on Linux, vice-versa, embedded systems on Windows, etc…

Linux: `ltrace, strace (ptrace), bpftrace, wireshark, valgrind, cachegrind, callgrind, helgrind`

Windows: `process monitor, wireshark`

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2Fd3pSpWlzfxKrh3dDYsS0%2FScreenshot%20from%202024-04-07%2018-52-44.png?alt=media&#x26;token=1aef5520-e862-4159-962c-c9e19c2b72c3" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FiTffGlIR886nisaPvmRv%2FScreenshot%20from%202024-04-07%2018-53-08.png?alt=media&#x26;token=23daa662-da1b-4eed-8723-b768efccd2e8" alt=""><figcaption></figcaption></figure>

## Debugging

Applications that can control (trace) a target executing binary.

* Debuggers can **create a process** and analyze it or **attach themselves to a running process**.
  * The process usually executes in the host system.
* This is the “typical”, low-tech way of dynamically analyzing a program.
  * Reuses concepts/tools from the engineering process applied to reverse engineering.

**Provide** extensive, interactive control over a process execution flow.

* Frequently at the level of opcodes and assembly.
* Can be integrated with static analysis tools.
  * Combining execution information with decompiled code, CFGs, and disassembly.

### Limitations

Debugging **can be detected** and subverted by the target application.

* Especially popular in malware and DRM systems.

The target application must be executed in a fully hosted environment.

* Without isolation measures, this provides a serious security risk.
* Remote debugging may be used to circumvent this limitation.

Host system architecture must match the target binary architecture.

* The binary is loaded to the host system as a standard process.
* No debugging of Windows in Linux, ARM or MIPS in x86.
* No direct way of debugging shellcode or a binary blob (e.g firmware).

### How do debuggers work?

Debuggers explore system calls provided by the operating system.

* Debuggers either:
  * create a child process, sharing the same address space.
  * attach to an existing process given that the user has the correct permissions (e.g. root).
* Linux: `ptrace`
* Windows: provides API for process control.
  * **`CreateProcess`** with specific **`dwCreationFlags`** (`DEBUG_PROCESS`).
  * **`OpenProcess`** with **`dwDesiredAccess`** (`PROCESS_VM_READ`, `PROCESS_VM_WRITE`, `PROCESS_VM_OPERATION`).

Debuggers may attach to hardware devices providing external debugging.

* Used in embedded devices.

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2F5Xr1P5xtYCg9wiTloEWw%2Fimage.png?alt=media&#x26;token=fb569d73-b452-4fff-a13c-1a8065ce25f1" alt=""><figcaption><p>edb</p></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FxTMoA6tEdkaq7DHNZfVK%2Fimage.png?alt=media&#x26;token=a6f9c8d6-f43c-4fd3-bd2c-7f531cb0d2d6" alt=""><figcaption><p>x86dbg</p></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2F48hQdR0rEfcBswmJQtXf%2FScreenshot%20from%202024-04-07%2019-12-49.png?alt=media&#x26;token=a4fc7964-8a6d-46e5-b2bf-95da8b352a5d" alt=""><figcaption></figcaption></figure>

Debugger set breakpoints which Trigger SIGTRAP, returning control to the debugger.

Patching the code with **`0xCC`** or using Hardware breakpoints (through **`PTRACE`**)

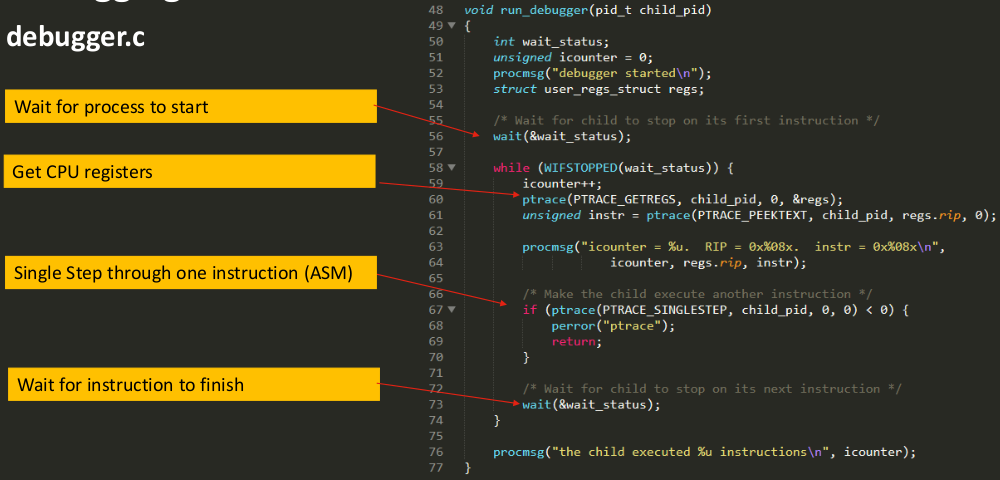

### Example

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FSjwnaW2vI7uNKnmmsJX9%2FScreenshot%20from%202024-04-07%2019-13-57.png?alt=media&#x26;token=ee427652-7e2b-44a2-a4ed-96656d7a2acb" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FHJKuMbsFb6niqY4yd3dd%2FScreenshot%20from%202024-04-07%2019-14-19.png?alt=media&#x26;token=84665a1f-20f2-4255-bf12-1c1277f101d4" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FEn6x4ACcIc2fp4S7asu5%2FScreenshot%20from%202024-04-07%2019-14-48.png?alt=media&#x26;token=e7854a4e-999e-4cbc-9ce7-c60457dff979" alt=""><figcaption></figcaption></figure>

## Sandboxing

Sandboxing improves the control that debuggers provide.

* Creation of a distinct execution environment.
  * Different libraries? Restricted view of the filesystem (minimal access to files).
* Isolate some actions, providing some safety to analyze malicious applications.

Implementation: lightweight virtual machines or namespaces/containers.

* Supported by mechanisms of the Operating System or additional tools.
* Tools: `sandboxie`, `pyrebox`, `panda`.

An agent monitors interactions of the application inside the environment and may allow instrumentation.

* File access, network communication.
* Remote debugging.

## Emulators

Emulators are common backends for secure sandboxes.

* May provide much better isolation as the guest and host environments are distinct.
  * The kernel is not shared, hardware is emulated.
* Tools: QEMU, Virtualbox, Vmware.

Emulation types.

* Full system emulation.
* User mode emulation.

### User Mode Emulation

Launches **processes** directly, but in a restricted environment.

* Process may be compiled for one CPU and executed on another CPU.
* Address space is restricted, such as filesystem and libraries available.
* Interaction with the Host OS is mediated by the emulator.

The emulator processes native CPU instructions (emulation/translation) and:

* Provide means **to translate syscalls** from guest to host OS.
* Understand intrinsic characteristics such as clones.
  * Clone is used to spawn new processes and will require the creation of a new emulation environment.
* Handle signals between the analyzed binary and the host system.

May provide integration with debugging tools.

#### User Mode Emulation with QEMU

QEMU allows user mode emulation **as long as the OS is kept the same**.

What it does:

* Machine code translation from any CPU to any CPU.
* Syscall mapping.
* Data structure conversion (Bit-order and Bit-width conversions).
* Extensive tracing capability to the level of Micro Ops.

Provides an **`gdbserver`** interface for interaction with GDB.

**Usefulness**: reverse engineering applications compiled to other architectures.

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2Fl7o7838v67rxgjhUSdA9%2Fimage.png?alt=media&#x26;token=29c505a0-f694-4bca-837b-730aecd42562" alt=""><figcaption></figcaption></figure>

### Full System Emulation

A full-blown virtual machine.

* Emulates a highly configurable set of hardware, including embedded devices.
* Maps interactions to Host resources (screen, disk, network).
* RE-aware software tools expose debugging interfaces (usually to gdb).

Provides the best level of isolation.

* All accesses are mediated by the emulator, reducing the attack surface to emulator components.
* Allows analyzing other binaries besides standard executable files.
  * Firmware, MBR, UEFI.

Malware frequently tries to detect Virtual Machines, emulators and debuggers...

* With variable sophistication.

## Remote debugging with emulators

### gdb and gdbserver

**gdb** can debug remote applications.

* It can even debug remote kernels and firmware.
* Why? Consider embedded devices and software inside an emulator.

**gdbserver** is launched on the target system, with the arguments:

* Either a device name (to use a serial liner) or a TCP hostname and port number, and the path and filename of the executable to be debugged.
* It then waits passively for the host **gdb** to communicate with it.

**gdb** is run on the host, with the arguments:

* The path and filename of the executable (and any sources) on the host.
* A device name (for a serial line) or the IP address and port number needed for connection to the target system.

**Alternative:** the remote application is compiled with a stub that provides a **gdbserver** interface when the application is launched.

## Example: Reversing an ARM binary

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FO5b0INc0CIyx6l5AD381%2Fimage.png?alt=media&#x26;token=0c46a0ce-79e5-49b5-b254-0811b821583b" alt=""><figcaption></figcaption></figure>

### unknown.bin

`$ file unknown.bin` returns “`unknown.bin: DOS/MBR boot sector`”, but it does look like a PDF file.

What we may extrapolate from that:

* Seems to be a DOS/Master Boot Record.
* DOS was only released for i386 (16 bits and 32 bits).
* `qemu-system-i386` may boot it if used as a hard disk or floppy disk.

How to address such files?

* Binary files other than ELFs (or PE or other similar) obey to a fixed set of rules.
* It is required to check the datasheets and gather the information required to load the file.
* Important:
  * CPU used, CPU mode, relevant or required peripherals: to know how to decode the binary instructions.
  * Program Entry Point: to know where the program starts, and where disassembly should start.

From a Master Boot Record, we may know:

* MBR is loaded to address 0x7C00.
* MBR code runs in Intel x86 Real Mode (16bits).
* There are quite a few limitations and assumptions.
* No OS is running. Input/Output must use BIOS Interrupts.

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FPuIg9BWcAb7wGvRCc7qj%2Fimage.png?alt=media&#x26;token=0b62d3b3-5aae-4488-b248-8f58499caefc" alt=""><figcaption><p>Loading the unknown.bin in ghidra</p></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2F7Y8gp55gXyPzySRUmGgf%2Fimage.png?alt=media&#x26;token=bb602a3d-6761-4e3c-ac09-481c4de77fd3" alt=""><figcaption><p>Loading the unknown.bin in ghidra</p></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2Fg5FIyq4qVMmtSuKEJrEU%2FScreenshot%20from%202024-04-07%2023-06-35.png?alt=media&#x26;token=a4464263-262e-4120-9f17-8c9a6d85d279" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FMHM7FnFUDkqFTwCmtuqb%2FScreenshot%20from%202024-04-07%2023-07-04.png?alt=media&#x26;token=673930d0-4ec0-4ea6-b2e8-d74d607af3e2" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2F2hy8nnDJVn9hJsFQ81Qh%2FScreenshot%20from%202024-04-07%2023-07-25.png?alt=media&#x26;token=37339cd7-07cf-43b4-83a6-b9bab626b15b" alt=""><figcaption><p>Loading the unknown.bin in qemu with gdb</p></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FRrJM8blrgiHgwNoNF6Wu%2FScreenshot%20from%202024-04-07%2023-08-02.png?alt=media&#x26;token=b84be750-1ff1-4351-af1b-6a1b90a427be" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1103423335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FvyEajzuIz0PAtDiV6JcU%2Fuploads%2FRYXOB31WGtyd7QAhqvj8%2FScreenshot%20from%202024-04-07%2023-08-36.png?alt=media&#x26;token=bb6d6f51-4825-496b-ba50-c89e6237b183" alt=""><figcaption></figcaption></figure>
