# AES (Advanced Encryption Standard)

* **2/Jan/1997: Call for evaluation criteria.**
  * NIST publicly asked interested parties to propose a criteria to choose a DES successor.
  * Many submissions received during 3 months.
* **12/Sep/1997: Call for new algorithms.**
  * Block ciphers 128-bit blocks.
  * 128, 192, and 256-bit keys.
  * Such ciphers were rare at the time of the call.

## Evaluation Rounds

**1st round**

* 15 candidate algorithms were evaluated by the community.
* Conferences were organized for the evaluation.
* Cryptographic weakness were found.
* Performance issues were identified.
  * In a variety of hardware.
  * PCs, smart cards, hardware implementations.
* Constrained environments were evaluated.
  * Limited memory smart cards, low gate count circuits, FPGAs.

**Aug/1999: AES finalists announced**

* MARS, RC6, Rijndael, Serpent, and Twofish.

**2nd round**

* The 5 finalists continued to be evaluated.
* In a final conference the proposal of each algorithm presented their advantage against the other.

**2/Oct/2000: AES algorithm was announced**

* Rijndael was selected.
* Proposed by Vincent Rijmen and Joan Daemen.
* Family of ciphers with different key and block sizes.

**26/Nov/2001: AES was approved by NIST**

* FIPS PUB 197.
* Subset of Rijndael (3 family members).

Now part of the ISO/IEC 18033-3 standard

## Architecture

<figure><img src="https://3450804385-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRIg06sTkCh60KyuJiT39%2Fuploads%2F2j2IyiSepxg0IEa4TcMY%2F2023-09-22_15-21.png?alt=media&#x26;token=1e5fa688-9fb5-4a3c-a596-c1cb2d7f8e34" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3450804385-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRIg06sTkCh60KyuJiT39%2Fuploads%2FyDIGiKbQpfyzCU4WLoSk%2F2023-09-22_15-26.png?alt=media&#x26;token=c09e62b9-7369-4c2d-a585-78c7c6adfec2" alt=""><figcaption></figcaption></figure>

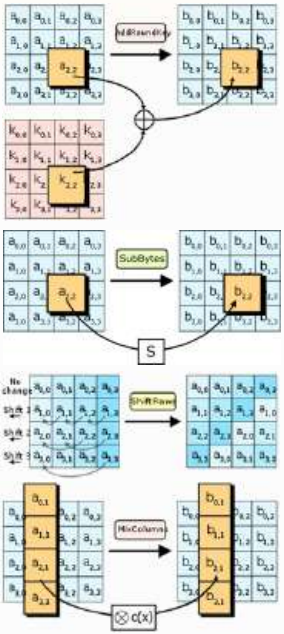

### AddRoundKey

* 128-bit XOR.
* Output is a 4x4 byte matrix.

### SubBytes

* 256-element S-box.
* Each matrix's bytes are substituted.

### ShiftRows

* Rows are rotated left.
* Byte shift vary (0, 1, 2 and 3).

### MixColumns

* Each column is transformed.
* Not performed in the last round.

<figure><img src="https://3450804385-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FRIg06sTkCh60KyuJiT39%2Fuploads%2FCJrnH085GgursEbCDiu1%2F2023-09-22_15-32.png?alt=media&#x26;token=58df33da-5a98-47a5-8bed-e7f33e6a535a" alt=""><figcaption></figcaption></figure>

## CPU Instruction Sets

Intel AES New Instructions (AES-NI).

| AESENC          | Perform one round of an AES encryption flow.      |
| --------------- | ------------------------------------------------- |
| AESENCLAST      | Perform the last round of an AES encryption flow. |
| AESDEC          | Perform one round of an AES decryption flow.      |
| AESDECLAST      | Perform the last round of an AES decryption flow. |
| AESKEYGENASSIST | Assist in AES round key generation.               |
| AESIMC          | Assist in AES Inverse Mix Columns.                |

ARMv8 Cryptographic Extension.
